ASW / SOLPLANET
Modular battery.
Separate inverter.
20–40 kWh package choices with listed 5–10 kW ASW inverter combinations.
Available now, subject to survey and confirmation.
ASW specifications ↗HOME BATTERY STORAGE
Store energy.
Choose the right system.
Charge from the grid during cheaper hours and use stored electricity later. Explore ASW modular batteries available now, plus DX all-in-one and split systems expected in early December.
Works without solar. Compatible systems can also store surplus solar generation. Your survey confirms the equipment and installation.
THREE BATTERY FORMATS
Storage matched to your home.
Battery capacity describes energy. The inverter and battery together determine power. Only the combinations in our current price list are offered.
Modular battery.
DX ALL-IN-ONE
Battery and inverter.
One system.
10–40 kWh package choices with listed 3.6, 5 or 8 kW integrated inverter combinations.
Expected early December. Date to be confirmed.
All-in-one specifications ↗DX SPLIT
Floor-standing battery.
Separate inverter.
16, 32 or 48 kWh packages. Listed options use DX-S or ASW inverters.
Expected early December. Date to be confirmed.
Split specifications ↗SOLPLANET AI-LB-G3
Slim modular storage.
Each module is 5.12 kWh nominal and 185 mm deep. The 20 and 25 kWh packages use four and five modules respectively. Larger systems need an approved layout.
| Package | Nominal energy | Usable energy¹ | Dimensions | Module weight² |
|---|---|---|---|---|
| 20 kWh | 20.48 kWh | 19.45 kWh | 630 × 1,280 × 185 | 184 kg |
| 25 kWh | 25.60 kWh | 24.32 kWh | 630 × 1,600 × 185 | 230 kg |
¹ Manufacturer test conditions: 95% depth of discharge, 25°C and 0.5C charge/discharge. Delivered energy also depends on losses, settings and conditions. ² Excludes the 2.6 kg base and separate inverter. Allow extra space for mounting, cabling, access and clearances.
Product characteristics.
Lithium iron phosphate (LFP) chemistry, IP66 enclosure, natural-convection cooling and battery management protections. Charging range: −8 to 58°C. Discharging range: −18 to 58°C. The location must meet the installation requirements.
The manufacturer’s ≥95% battery round-trip efficiency is not a complete AC-system figure. Its 6,000-cycle test is not a warranty or guaranteed service life.
Our calculator assumptions.
The calculator uses 90% of the rounded package capacity for daily usable storage. For a 20 kWh package this is 18 kWh. This modelling assumption differs from laboratory usable-energy figures and does not include charging losses.
Explore your estimate ↗LARGER ASW SYSTEMS
More storage.
An agreed layout.
The supplied G3 document supports up to five modules per tower. Larger packages require compatible equipment, approved interconnections and space for a separate inverter.
30 kWh package.
A proposed layout is two 15 kWh stacks, each approximately 630 mm wide × 960 mm high × 185 mm deep. Combined nominal capacity is 30.72 kWh.
40 kWh package.
A proposed layout is two 20 kWh stacks, each approximately 630 mm wide × 1,280 mm high × 185 mm deep. Combined nominal capacity is 40.96 kWh.
These are suggested layouts, subject to survey and the approved configuration. The 35 kWh arrangement is confirmed individually. Stack dimensions exclude clearances, mounting, cables and the inverter. Two stacks do not necessarily use less total installation space.
Supplier product rendering

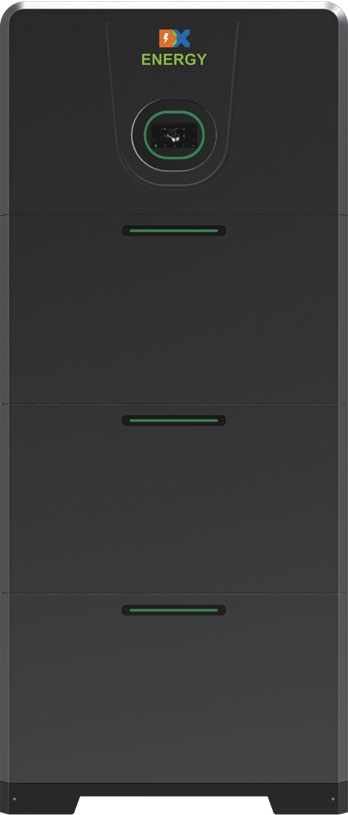

EXPECTED EARLY DECEMBER
DX all-in-one.
Battery storage and an integrated inverter in one floor-standing system. The November range includes the combinations below.
| Package | Nominal energy | Listed inverter options |
|---|---|---|
| 10 kWh | 10.24 kWh | 3.6 / 5 / 8 kW |
| 15 kWh | 15.36 kWh | 3.6 / 5 / 8 kW |
| 20 kWh | 20.48 kWh | 5 / 8 kW |
| 25 kWh | 25.60 kWh | 5 / 8 kW |
| 30 kWh | 30.72 kWh | 5 / 8 kW |
| 35 kWh | 35.84 kWh | 5 / 8 kW |
| 40 kWh | 40.96 kWh | 5 / 8 kW |
The price list labels its smaller option 3.6 kW; the applicable 3K6L datasheet rates it at 3,680 W. Your quote identifies the exact model, dimensions, usable capacity and operating limits. Capacity is not a usable-energy guarantee.
LFPBattery chemistry
IP65Enclosure rating
IntegratedBattery and inverter
Wi-FiOptional connection
Availability and installation date to be confirmed. Charging: 0–50°C; discharging: −15–50°C. Backup requires the appropriate additional installation. We provide the applicable model-specific warranty with your proposal.
Separate inverter required
EXPECTED EARLY DECEMBER
DX split battery.
A 16.08 kWh nominal LFP battery unit paired with a separate inverter. November packages cover 16, 32 and 48 kWh capacity classes.
- 16 kWh: listed 3.6 or 5 kW inverter, or 8 or 10 kW ASW inverter.
- 32 and 48 kWh: listed 5 kW inverter, or 8 or 10 kW ASW inverter.
- Single unit: 450 mm wide × 845 mm high × 251 mm deep; 120 kg.
- Up to 90% depth of discharge in the supplied document. Actual usable energy depends on settings and operation.
- Supplier document lists IP54 and five-year battery warranty. Siting, certified model and full warranty terms are confirmed in your proposal.
Multiple-unit layouts, inverter compatibility, clearances and system output need an agreed design. The separate inverter’s protection rating does not change the battery’s rating.
See split package prices ↗A sheltered location must meet the exact product’s installation requirements. Battery charging: 0–50°C; discharging: −10–55°C. Wi-Fi is optional. Cycle-life test results do not establish a guaranteed lifetime. Availability and installation date to be confirmed.
LIVING WITH YOUR BATTERY
The details that matter.
Monitoring.
We explain the app and connection supplied for your exact system. Solplanet and DX equipment may use different monitoring arrangements.
Location.
Survey checks include dimensions, mounting, access, cable routes, temperatures and clearances for the complete installation.
Warranty.
Battery, inverter and EV charger cover can differ. Your written proposal identifies the applicable terms, exclusions and claims process. Workmanship cover is separate.
Warranty explained ↗MANUFACTURER DOCUMENTS
Check the exact equipment.
Datasheets describe product capabilities. The price list and your proposal establish the supplied combination and current availability.
YOUR HOME. YOUR NEXT STEP.
Let’s find the right fit.
Tell us about your electricity use, available space and what you want your battery to do.
