How much energy.
Battery capacity tells you how much electricity can be stored. More usable capacity can keep your appliances running for longer.
CHOOSING YOUR INVERTER
Enough power.
When life gets busy.
Your battery holds the energy. Your inverter controls how quickly it can flow. Match both to your home’s everyday needs, the appliances you run together and your overnight charging window.
You do not need to be an inverter expert.
Your inverter controls how quickly stored electricity can power your home. We check your appliances, charging window and battery size to confirm the right output.
Find my system and savings ↗How much power.
Power tells you how quickly energy can be delivered or charged. More power can support a greater combined load, within the whole system’s limits.
For example, a steady 1 kW load uses 1 kWh in one hour. Actual household demand changes as appliances switch on and off.
ASW HYBRID INVERTERS
Choose the power.
Understand the limits.
Our price list pairs selected inverter models with each battery size. The 6 kW and 8 kW options are from different inverter families.

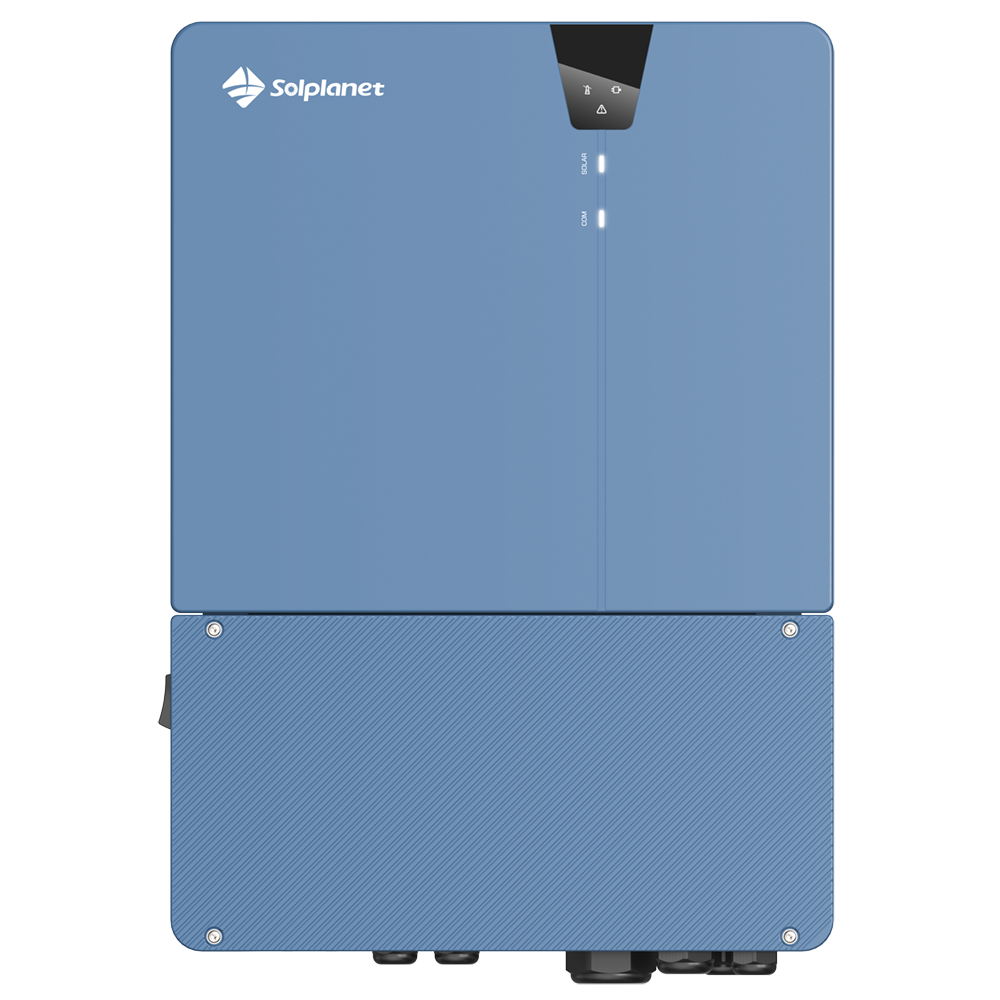

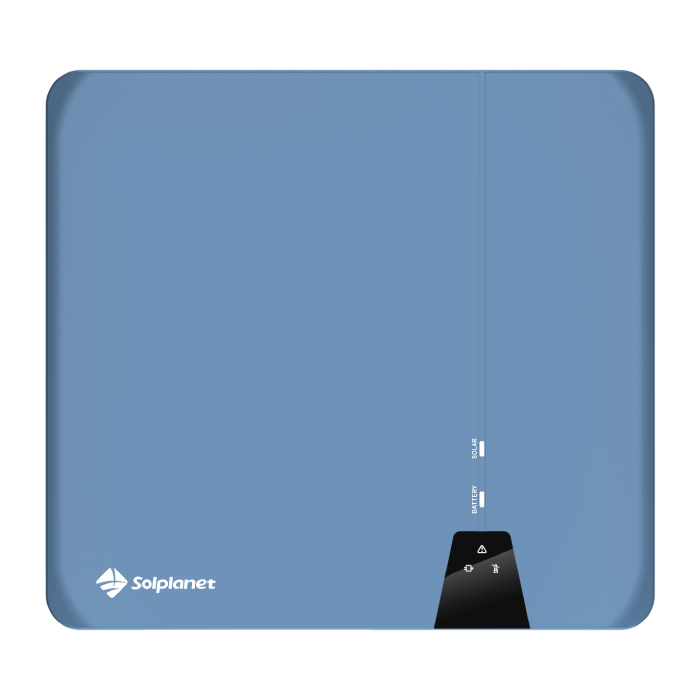

| Feature | H-S2: 5 / 6 kW | SH: 8 / 10 kW |
|---|---|---|
| Rated AC output | 5 / 6 kW by model | 8 / 10 kW by model |
| Maximum battery charge / discharge | 5 kW on both listed H-S2 models | 8 kW on ASW008K-SH 10 kW on ASW010K-SH |
| Dimensions | 483 × 455 × 193.5 | 484 × 679 × 230 |
| Weight | 25 kg | 34.5 kg |
| Enclosure / cooling | IP66 · natural convection | IP66 · smart cooling |
| Solar trackers (MPPTs) | 2 | 3 |
| Maximum solar array | 7.5 / 9 kWp by model | 16 / 20 kWp by model |
| Monitoring | Solplanet App with Wi-Fi stick | Solplanet App; Wi-Fi / LAN dongle options |
Output depends on battery charge, battery module count, operating conditions and the installed configuration. Maximum PV array size is a design limit, not a guaranteed generation figure. The listed 5 kW H-S2 is ASW5000H-S2; 6 kW is ASW6000H-S2. Only the combinations in the November package list are offered.
NEW DX SYSTEMS
Two inverter formats.
DX all-in-one.
The November all-in-one packages have an integrated inverter, with listed 3.6, 5 or 8 kW options depending on capacity.
DX split.
The 16 kWh split package offers 3.6 or 5 kW options. Listed 32 and 48 kWh packages offer a 5 kW option. The exact inverter model is confirmed in your proposal. The 8 and 10 kW split options explicitly specify an ASW inverter.
The DX-S datasheet lists IP65, a 500 mm width × 450 mm height × 210 mm depth, and 25 kg weight. The separate EB-1608 battery has its own rating and siting requirements.
Inverter labels do not establish battery output. We confirm exact models, compatibility, charging limits, network requirements and backup design for each installation. Availability and installation date to be confirmed.
Read the DX-S datasheet ↗A BETTER FIT
Four things we look at.
Daily energy use starts the conversation. It doesn’t tell us everything about the inverter you need.
Appliances running together.
Cooking, heating, EV charging and other loads can overlap. We review the power needed at busy times, rather than size the inverter from annual consumption alone.
Time to recharge.
The battery needs enough charging time within your cheaper tariff window. Battery input power, household demand and any EV charging all affect what can be achieved overnight.
Your electrical supply.
We review the incoming supply, existing equipment and relevant grid requirements. Your final proposal confirms the appropriate installation and any network permissions needed.
Plans for the future.
A future EV, heat pump or solar installation can change the system you need. Tell us what you’re planning so we can discuss storage and output together.
SOLAR & BACKUP
More capability.
Planned properly.
A hybrid inverter can work with compatible solar and provide a dedicated backup output. Both need the right installation design.
Existing or future solar.
Both ASW families have inputs for compatible solar panels. Separate MPPT trackers manage different panel strings. We check the array, existing inverter, voltage, current and connections before confirming a design.
Solar PV integration or installation requires a separately confirmed scope and quotation. We assess existing equipment before agreeing the work and cost.
Power during an outage.
Our optional EPS setup powers selected essential circuits through a dedicated backup consumer unit. It is quoted separately. It does not automatically power every circuit in your home.
The H-S2’s rated EPS output is 5 kVA; the 8 and 10 kW SH models have rated EPS outputs of 8 and 10 kVA respectively. The battery configuration, stored charge and connected loads determine practical output and duration.
MANUFACTURER DOCUMENTS
Check the exact model.
ASW H-S2 series3–6 kW hybrid inverters · 2 pages · PDFASW SH series8–10 kW hybrid inverters · 2 pages · PDF
See the November packages and cash prices for the exact available and forthcoming combinations. The calculator uses the same November cash-price basis.
YOUR HOME. YOUR NEXT STEP.
Choose storage and power together.
Tell us about your home, your electricity use and what you’d like your system to do.
